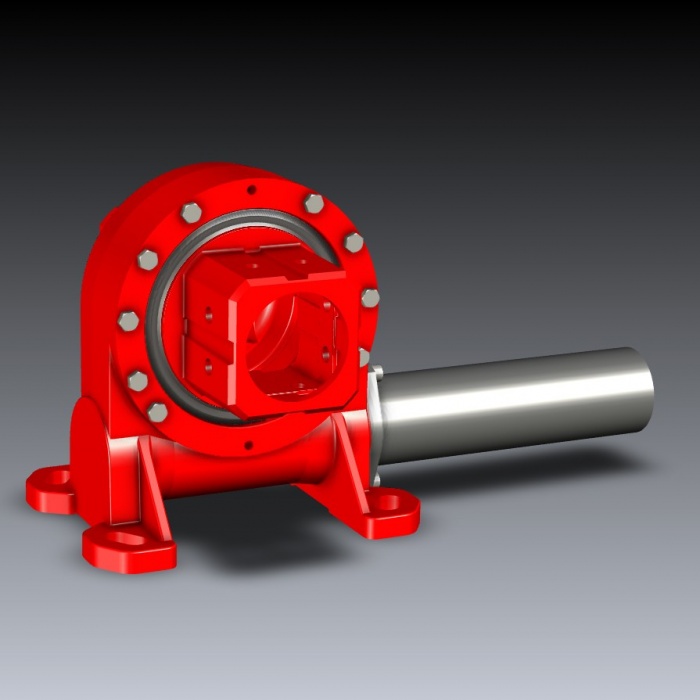

Model：SE7G
Category：Slewing Drive
Visit：1551
Time：2022-02-16
Description：This product is designed for photovoltaic power generation industry, and it is widely used in single-axis &dual-axis trackers. It adopts vertical structure design, which effectively simplifies the holder and reduces the overall system cost. The new technology is adopted to control the tracking accuracy, which can reach less than 0.2 degrees, and the positioning accuracy can be realized. The input interface is flexible, which can facilitate the connection and input of various hydraulic motors and reduction motors.
InquirySend MailIt is the most widely used rotary device at present, which is used for solar single axis tracking power generation system. Excellent protection grade and sufficient holding torque ensure that the slewing device can resist the damage of wind and sand.
Transmission mode: helical gear and worm
Sealing type: sealing strip
Reduction ratio：60:1
Tipping moment：10.4kN.m（max）
Holding torque：34kN.m
Rotating accuracy：≤0.2°
Protection grade：IP65
Ambient temperature：-30~+70℃
Type of worm end：flat key (25mm OD of worm)
