SE17A Slewing Drive

Model:SE17A
Category:Slewing Drive
Visit:170
Time:2022-02-17

Description:This product is designed for use in construction machinery, garden machinery,amusement park, transportation and other industries. And it’s adapted across a range of products, such as aerial work platform, cranes, hydraulic flat cars, robots and other products. It has strong overturning torque and axial force, which can cope with bad working conditions. The device has the advantages of small volume, convenient installation and maintenance, and good sealing performance.

InquirySend Mail
  • Description
  • Technical Data
  • Solutions
  • Production Site


This product is designed for use in construction machinery, garden machinery,amusement park, transportation and other industries. And it’s adapted across a range of products, such as aerial work platform, cranes, hydraulic flat cars, robots and other products. It has strong overturning torque and axial force, which can cope with bad working conditions. The device has the advantages of small volume, convenient installation and maintenance, and good sealing performance.

Transmission mode: helical gear and worm

Sealing type: sealing strip

Reduction ratio:104:1

Tipping moment:142.4kN.m(max)

Axial load:1166kN

Rotating accuracy:≤0.1°

Type of worm end: 6B spline hole, φ25 with flat key

Techinical data of Rotary reducer
Items Unit
Output Speed (Intermittent) rpm 1.34
Rated Output Torque N.m 12960
Overturning Moment(MAX) KN.m 142.4
Holding Torque KN.m 72.3
Axial Load(MAX) KN 1166
Radial Load(MAX) KN 435
Reduction Ratio 104:1
Rotating Accuracy ≤0.1
Techincal data of hydraulic motor
Pressure 12.1
Flow L/min 23

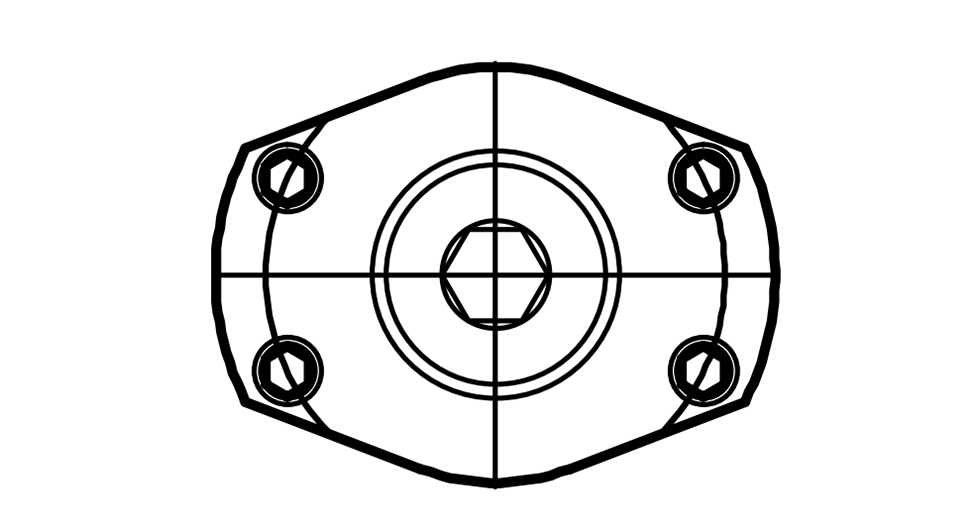

A-Direction View

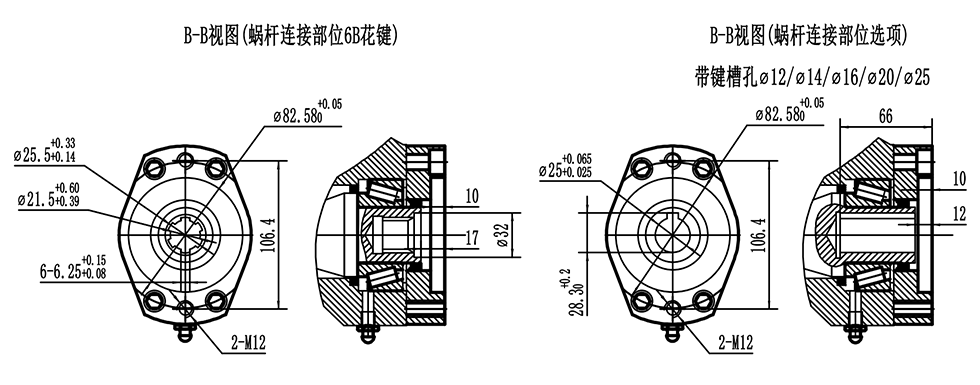

B-B View
