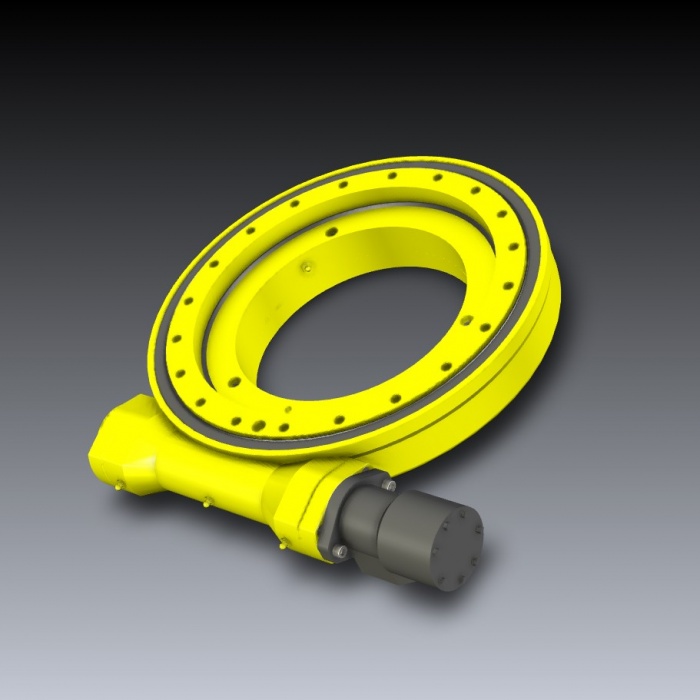

Model：SE17B
Category：Slewing Drive
Visit：250
Time：2022-02-17
Description：This product is designed for use in construction machinery, garden machinery,amusement park, transportation and other industries. And it’s adapted across a range of products, such as aerial work platform, cranes, hydraulic flat cars, robots and other products. It has strong overturning torque and axial force, which can cope with bad working conditions. The device has the advantages of small volume, convenient installation and maintenance, and good sealing performance.
InquirySend Mail
This product is designed for use in construction machinery, garden machinery,amusement park, transportation and other industries. And it’s adapted across a range of products, such as aerial work platform, cranes, hydraulic flat cars, robots and other products. It has strong overturning torque and axial force, which can cope with bad working conditions. The device has the advantages of small volume, convenient installation and maintenance, and good sealing performance.
Transmission mode: helical gear and worm
Sealing type: sealing strip
Reduction ratio：104:1

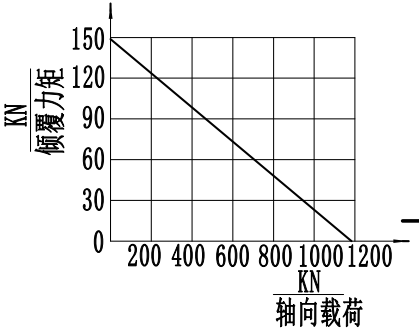

Tipping moment：142.4kN.m（max）
Axial load：1166kN
Rotating accuracy：≤0.1°
Type of worm end: 6B spline hole, φ25 with flat key
| Techinical data of Rotary reducer | ||
| Items | Unit | |
| Output Speed (Intermittent) | rpm | 1.34 |
| Rated Output Torque | N.m | 12960 |
| Holding Torque(MAX) | KN.m | 142.4 |
| Holding Torque | KN.m | 72.3 |
| Axial Load(MAX) | KN | 1166 |
| Radial Load(MAX) | KN | 435 |
| Reduction Ratio | 104:1 | |
| Rotating Accuracy | ≤0.1 | |
| 2.Techincal data of hydraulic motor | ||
| Pressure | 12.1 | |
| Flow | L/min | 23 |
 |
||

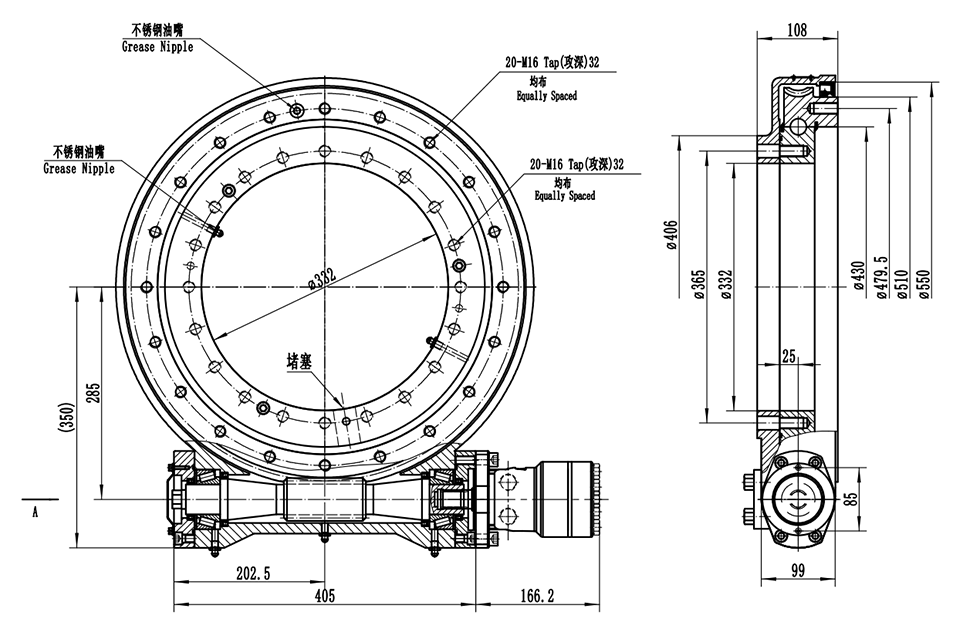

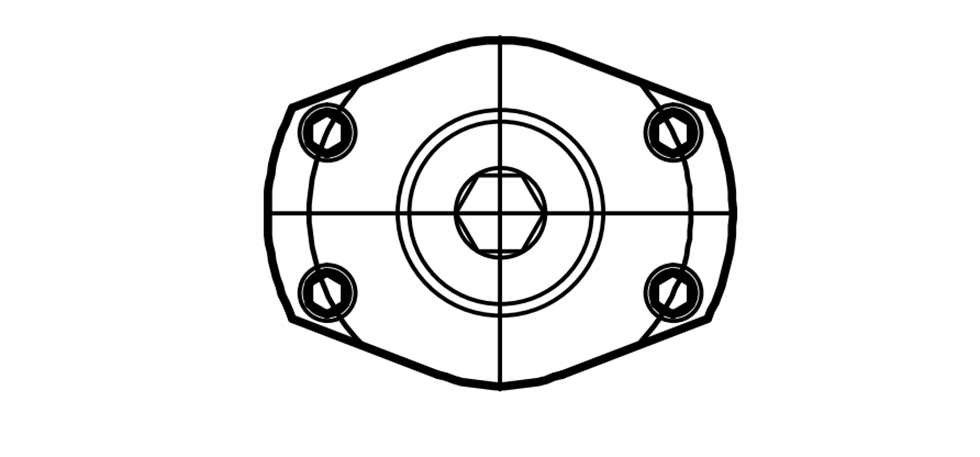

A-Direction View

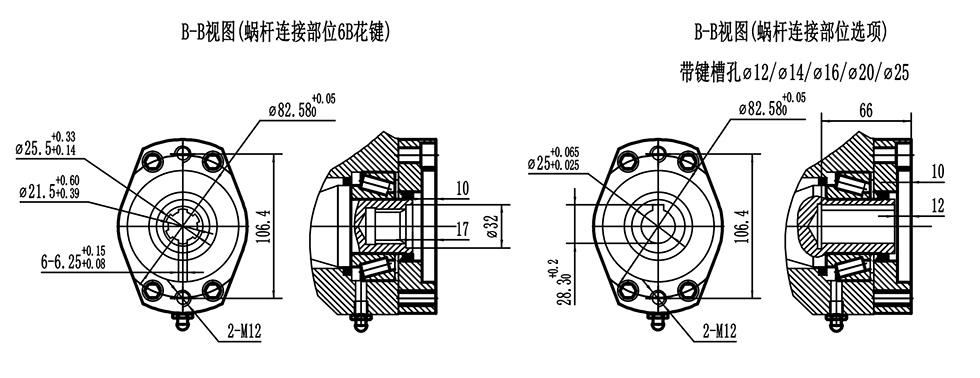

B-B View
