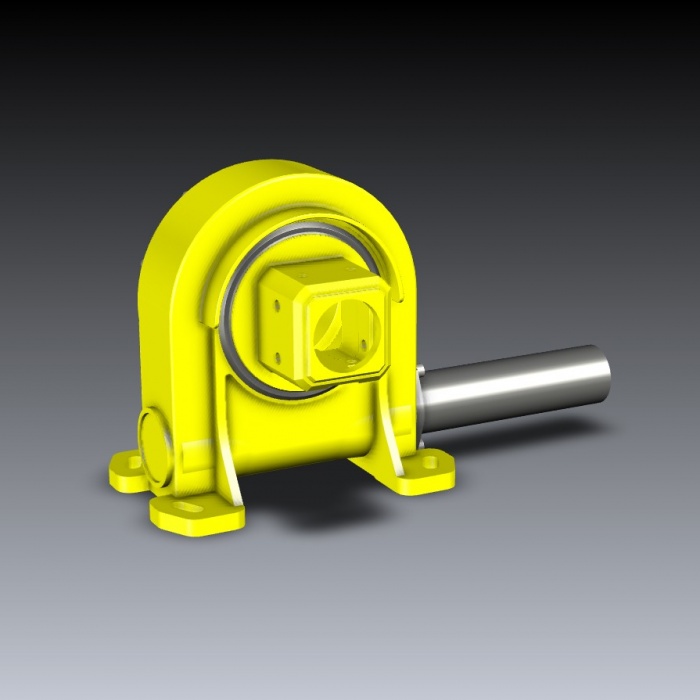

SE9G Solar Slewing Drive

Model:SE9G
Category:Slewing Drive
Visit:213
Time:2022-02-17

Description:This product is designed for photovoltaic power generation industry, and it is widely used in single-axis &dual-axis trackers. It adopts vertical structure design, which effectively simplifies the holder and reduces the overall system cost. The new technology is adopted to control the tracking accuracy, which can reach less than 0.2 degrees, and the positioning accuracy can be realized. The input interface is flexible, which can facilitate the connection and input of various hydraulic motors and reduction motors.

InquirySend Mail
  • Description
  • Technical Data
  • Production Site


Its protection grade is IP55 (up to IP65). The output torque and holding torque have been specially treated, which is much larger than the ordinary rotary device. It is applicable to the single axis photovoltaic tracking power generation industry to improve power generation efficiency.


Transmission mode: helical gear and worm

Sealing type: sealing strip

Reduction ratio:61:1

Tipping moment:33.9kN.m(max)

Holding torque:68kN.m

Rotating accuracy:≤0.2°

Protection grade:IP65

Ambient temperature:-30~+70℃

Type of worm end: flat key (25mm OD of worm)
