Model：SE8G
Category：Slewing Drive
Visit：385
Time：2022-02-16
Description：This product is designed for photovoltaic power generation industry, and it is widely used in single-axis &dual-axis trackers. It adopts vertical structure design, which effectively simplifies the holder and reduces the overall system cost. The new technology is adopted to control the tracking accuracy, which can reach less than 0.2 degrees, and the positioning accuracy can be realized. The input interface is flexible, which can facilitate the connection and input of various hydraulic motors and reduction motors.
InquirySend MailIt can be with 24V brush / brushless DC motor or other types of motor. High protection level ensures that it has good and continuous performance in desert, desert and other outdoor applications. This product is mainly used in the photovoltaic tracking power generation industry to improve power generation efficiency.
Transmission mode: helical gear and worm
Sealing type: sealing strip
Reduction ratio：50:1
Tipping moment：33.9kN.m（max）
Holding torque：45kN.m
Rotating accuracy：≤0.2°
Protection grade：IP65
Ambient temperature：-30~+70℃
Type of worm end: flat key (25mm OD of worm)
| Techinical data of Rotary reducer | ||
| Items | Unit | |
| Output Speed | rpm | ≤0.029 |
| Overturning Moment | N.m | 8400 |
| Overturning Moment(MAX) | KN.m | 10.4 |
| Holding Torque | KN.m | 34 |
| Reduction Ratio | 60:1 | |
| Rotating Accuracy | ≤0.2 | |
| Techincal data of motor | ||
| Rated Voltage | 24V | |
| Rated Current | ≤4.9A | |
| Rated Torque | N.m | 300 |
| Rated Speed | rpm | 1.768 |
| Ambient Temperature | c | -30℃~+70℃ |
| Protection grade | IP65 | |

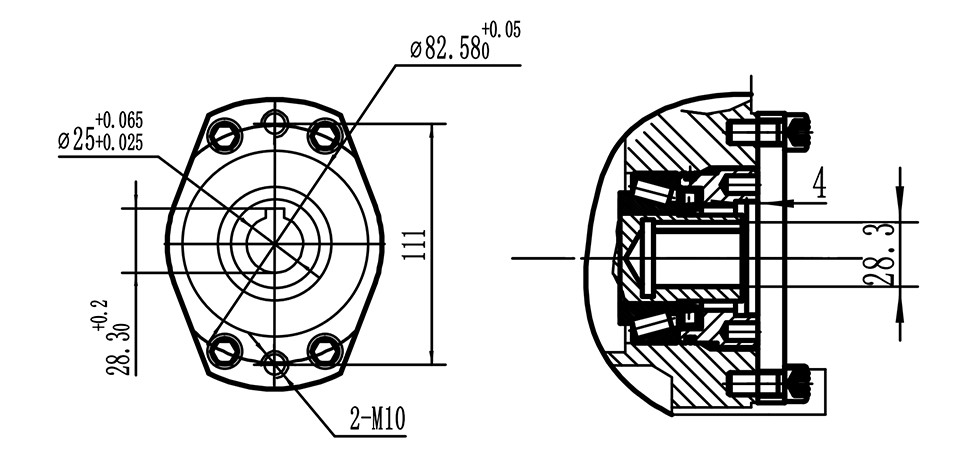

B-B View (Option for Worm Connection)
